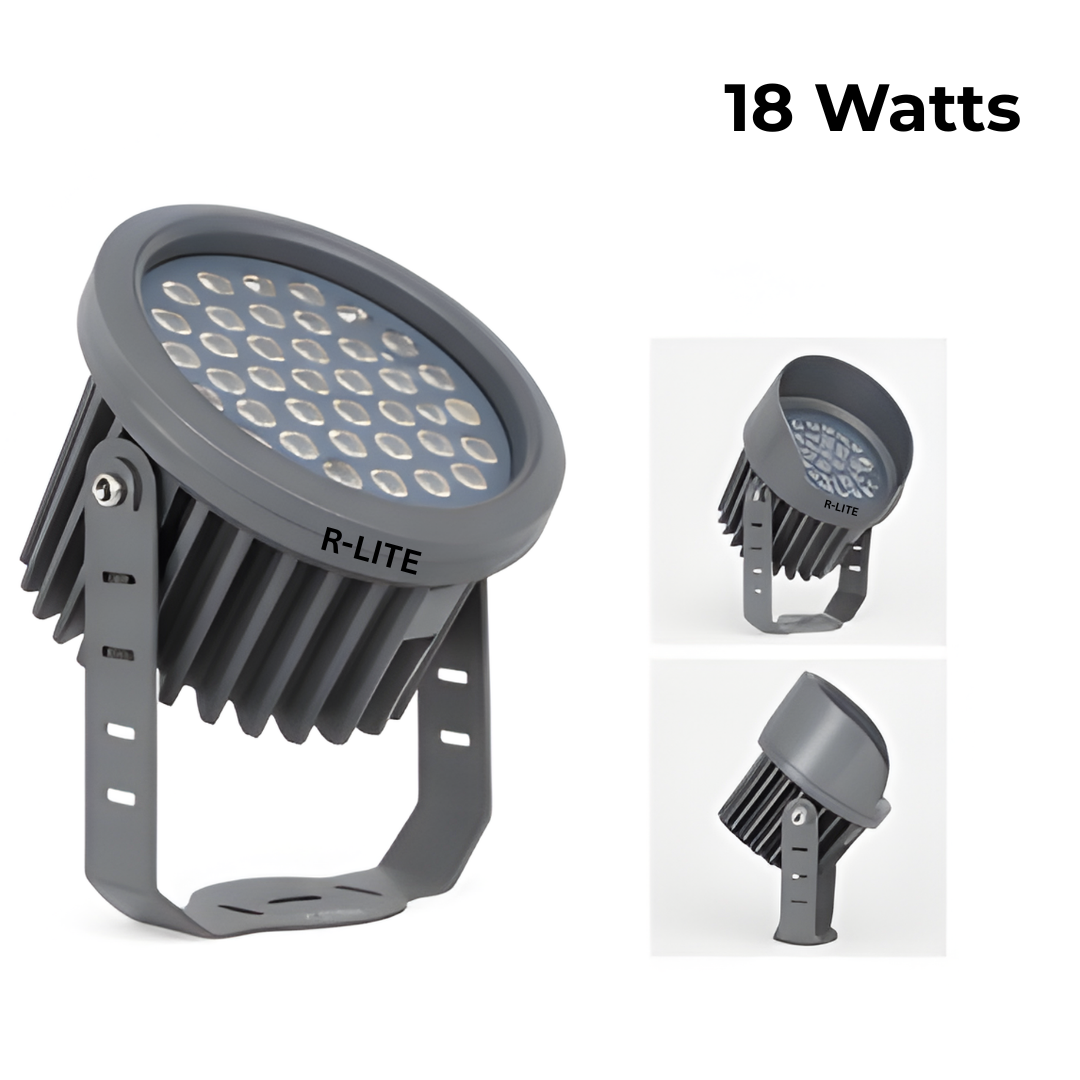

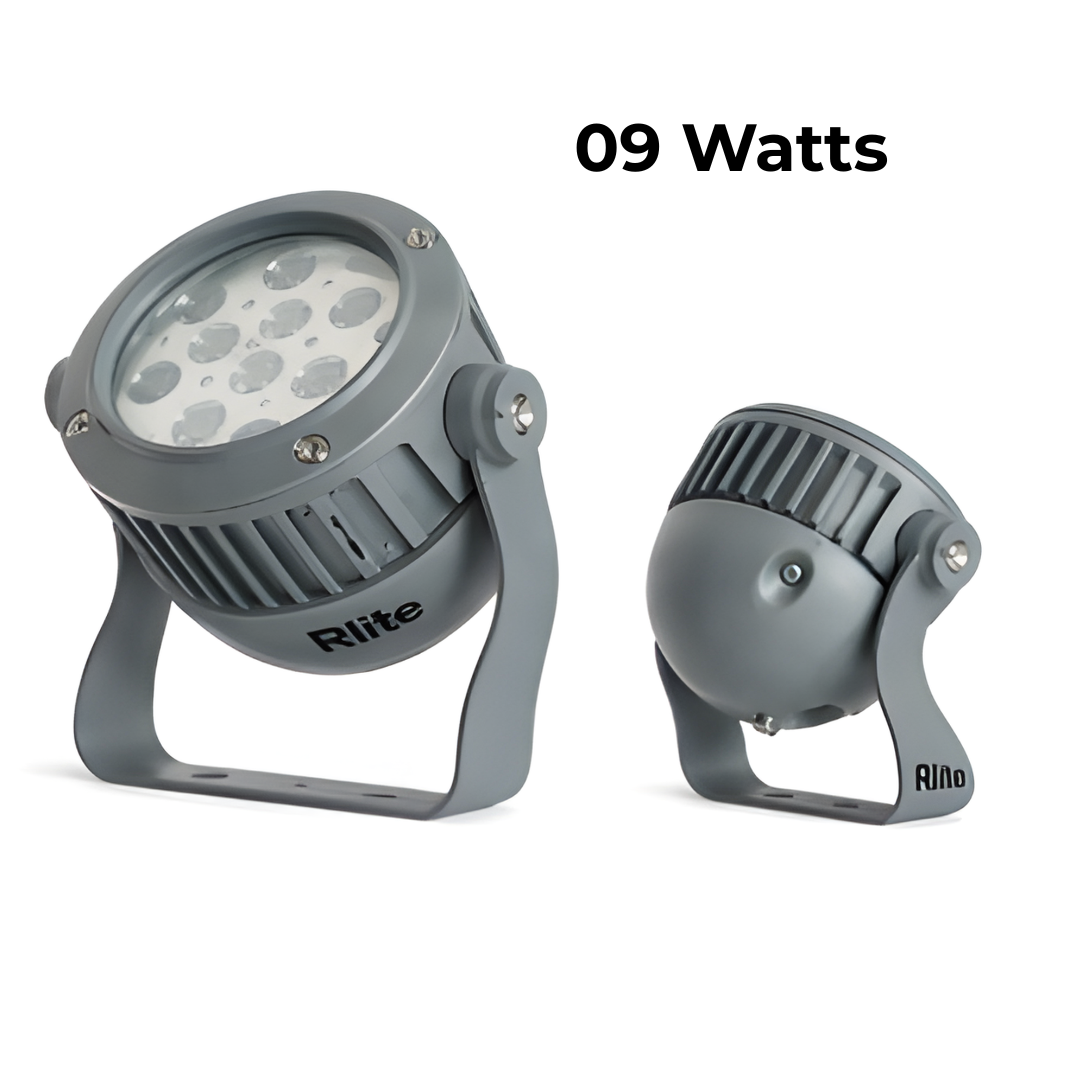

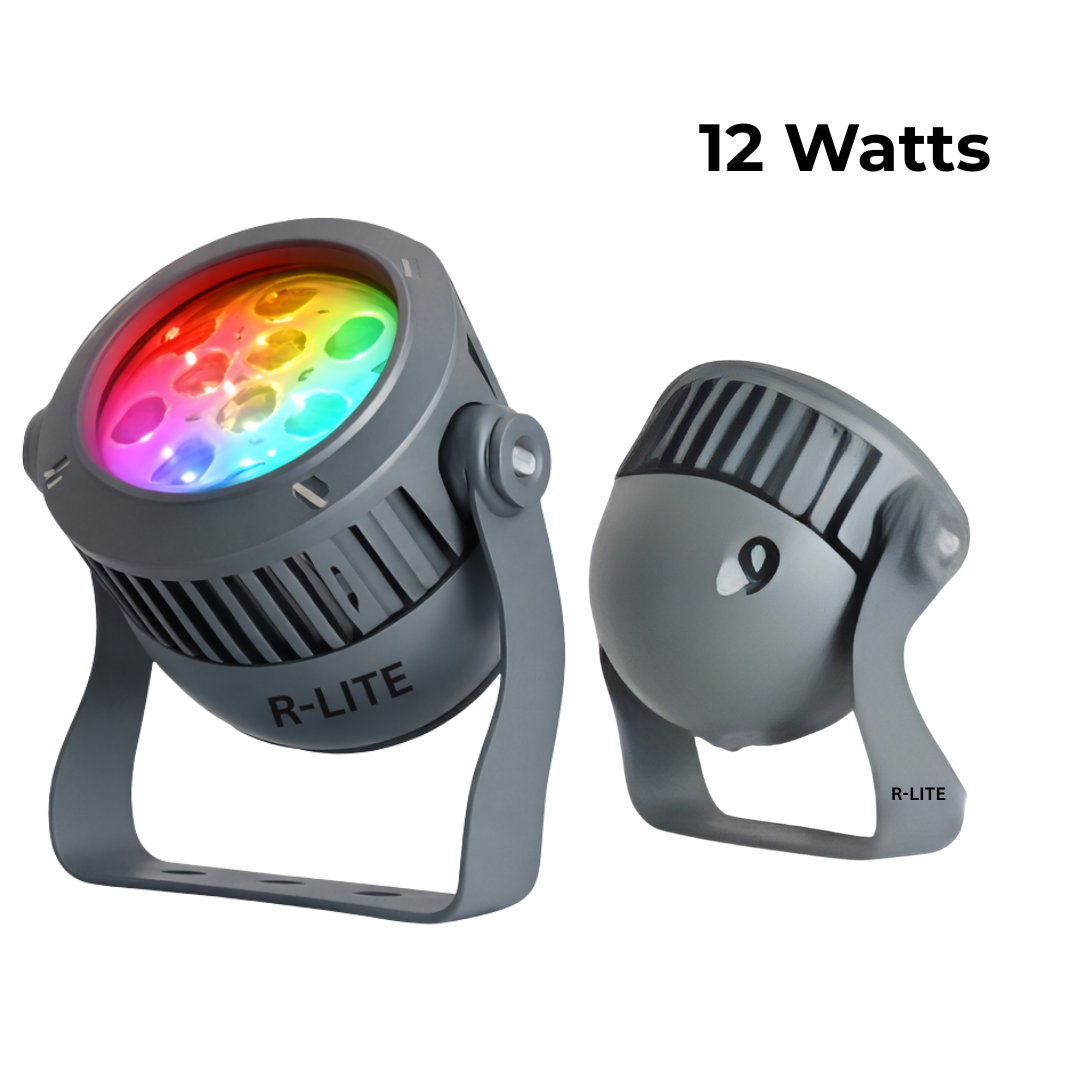

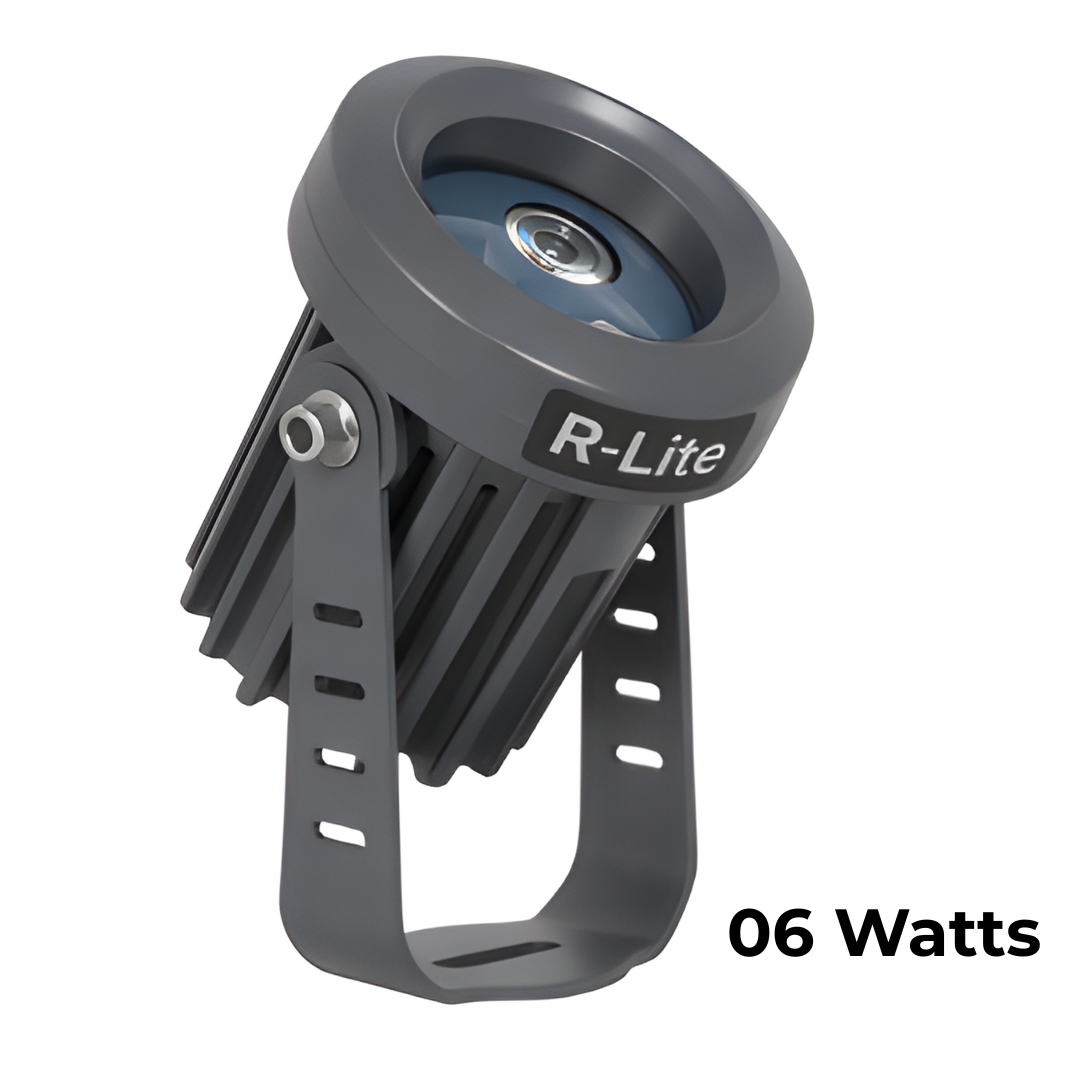

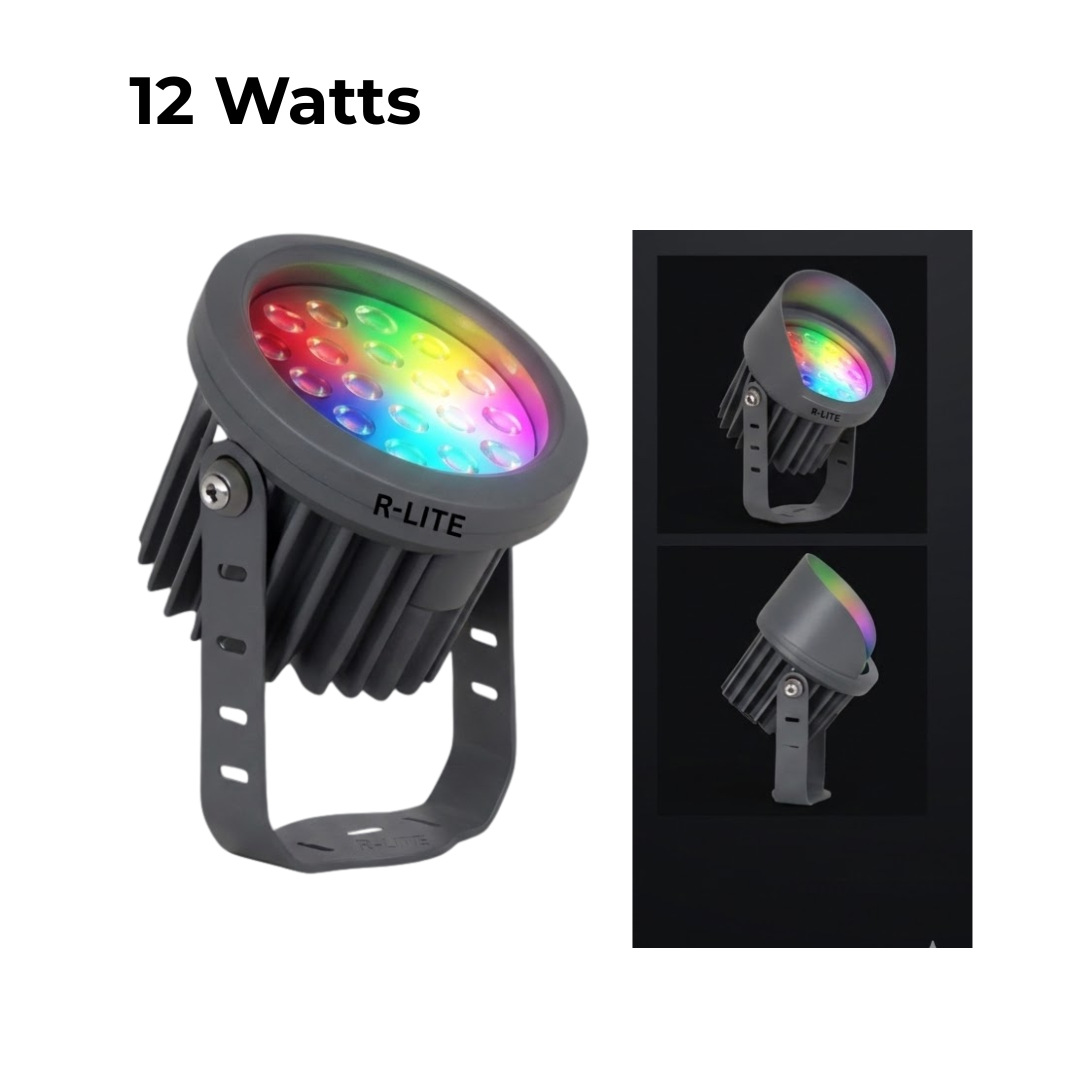

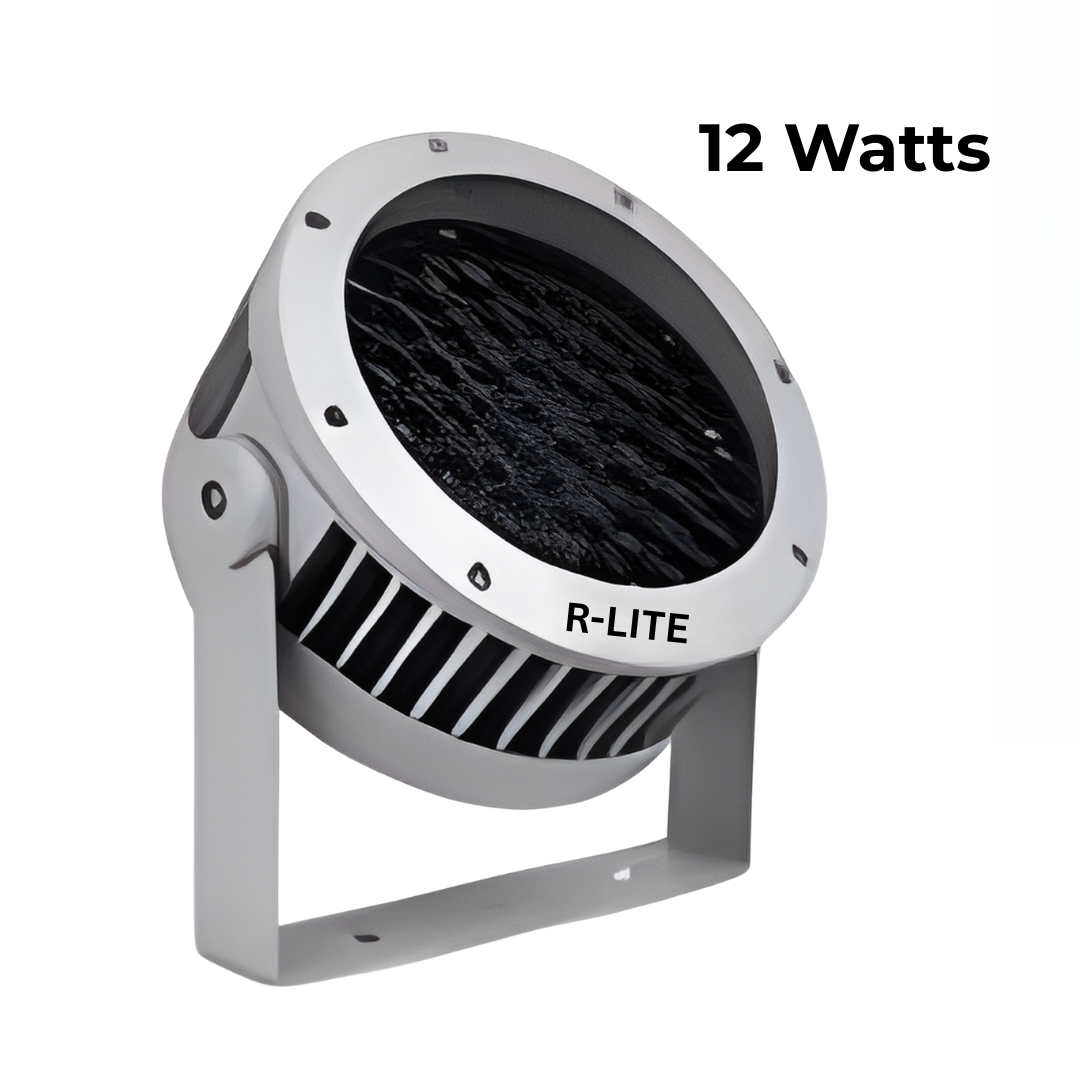

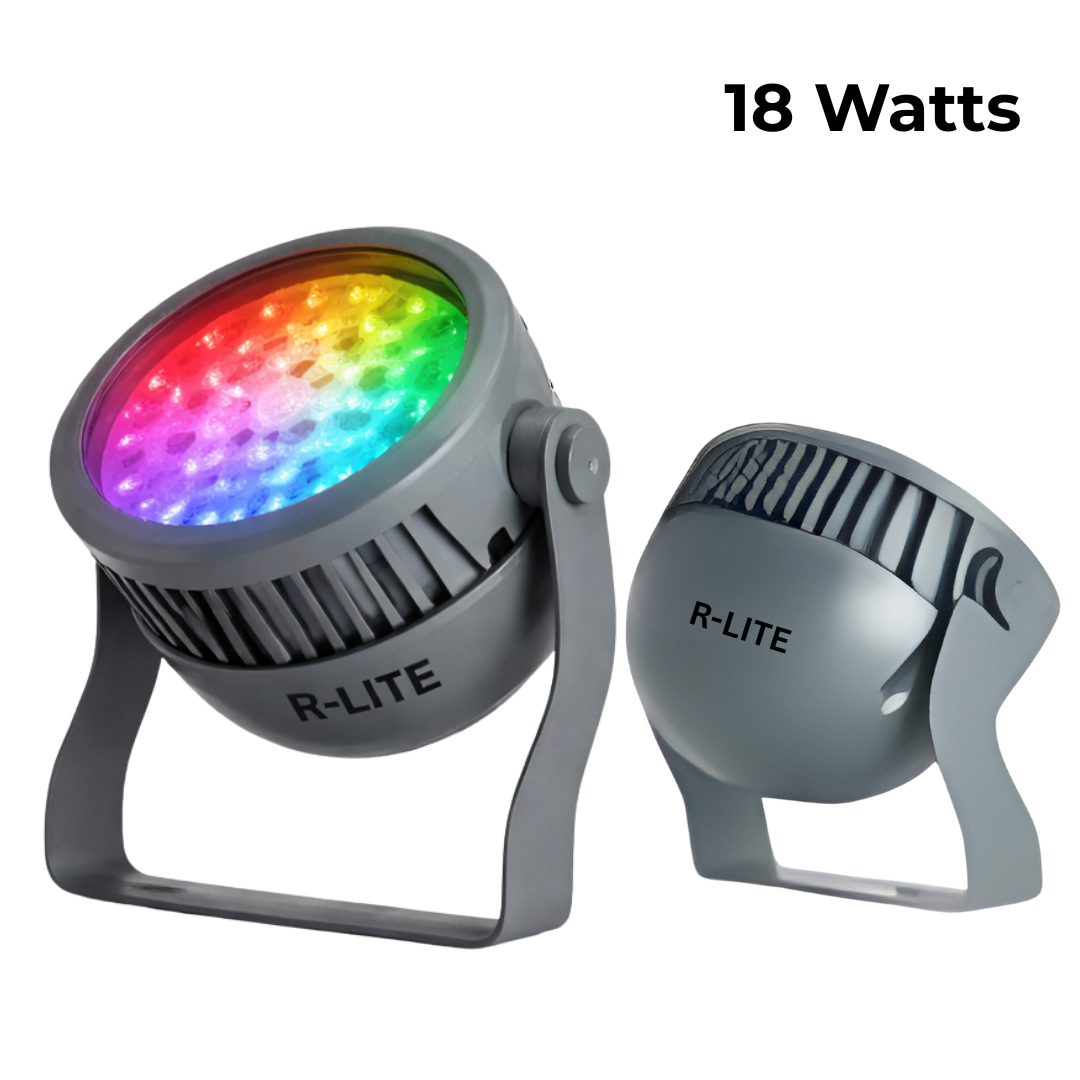

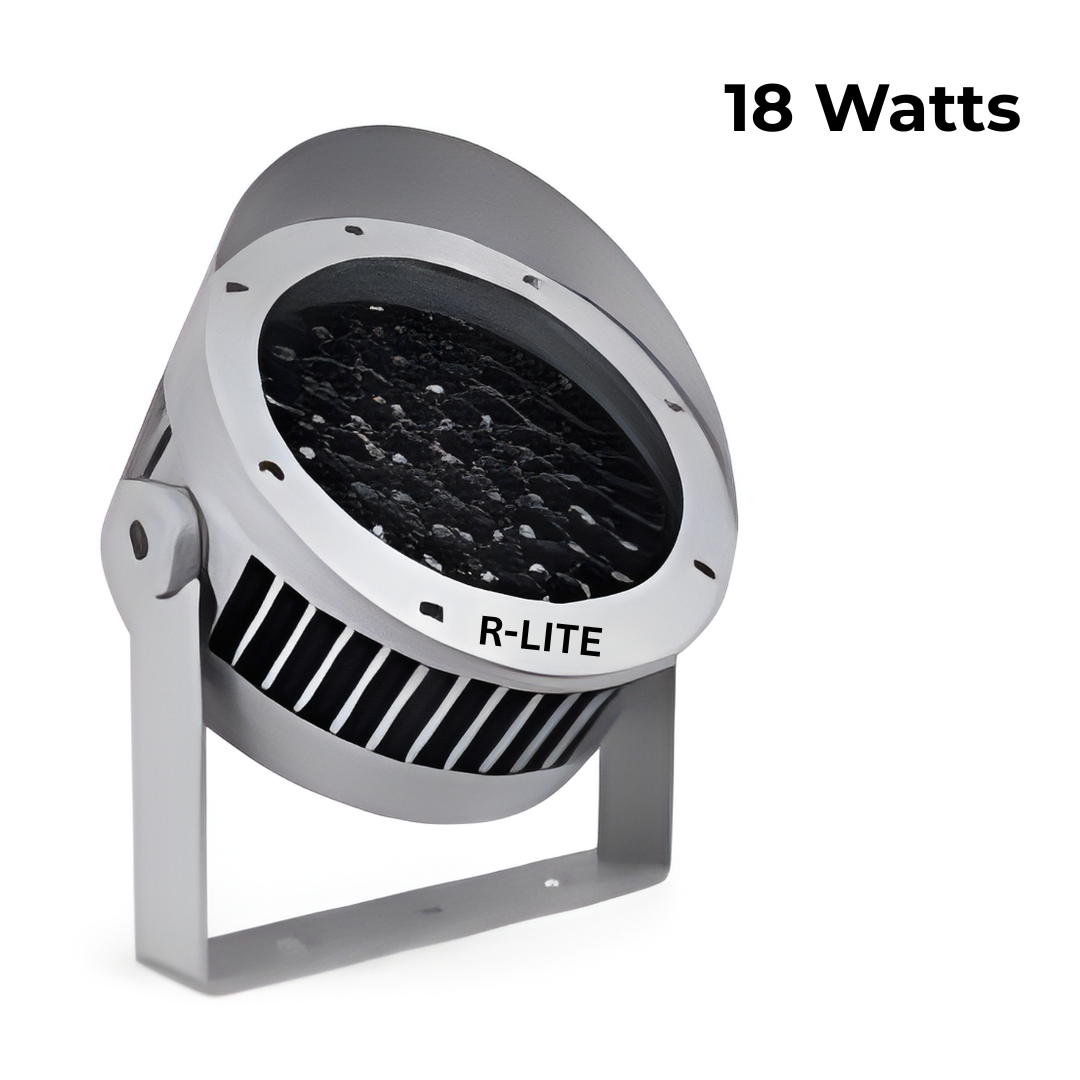

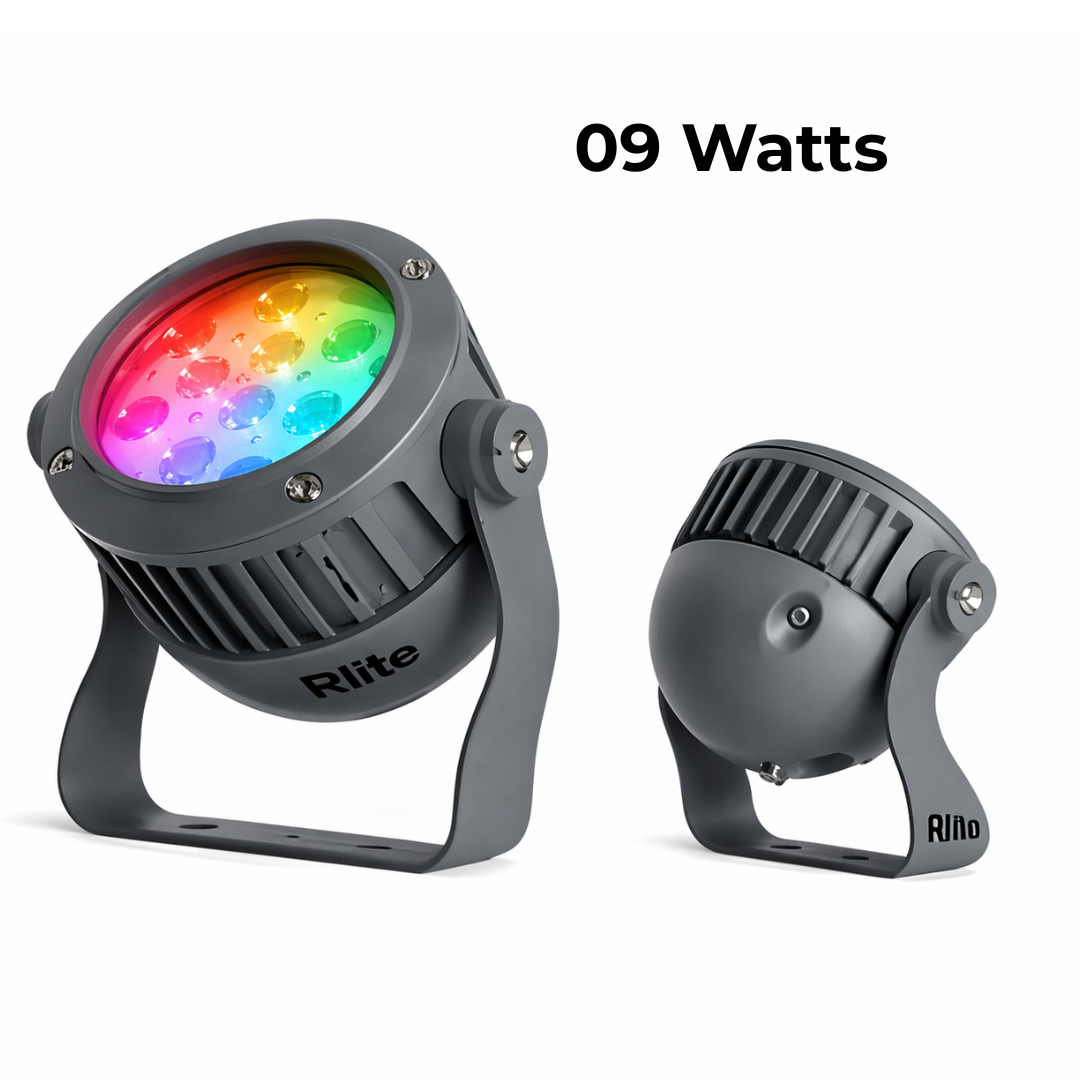

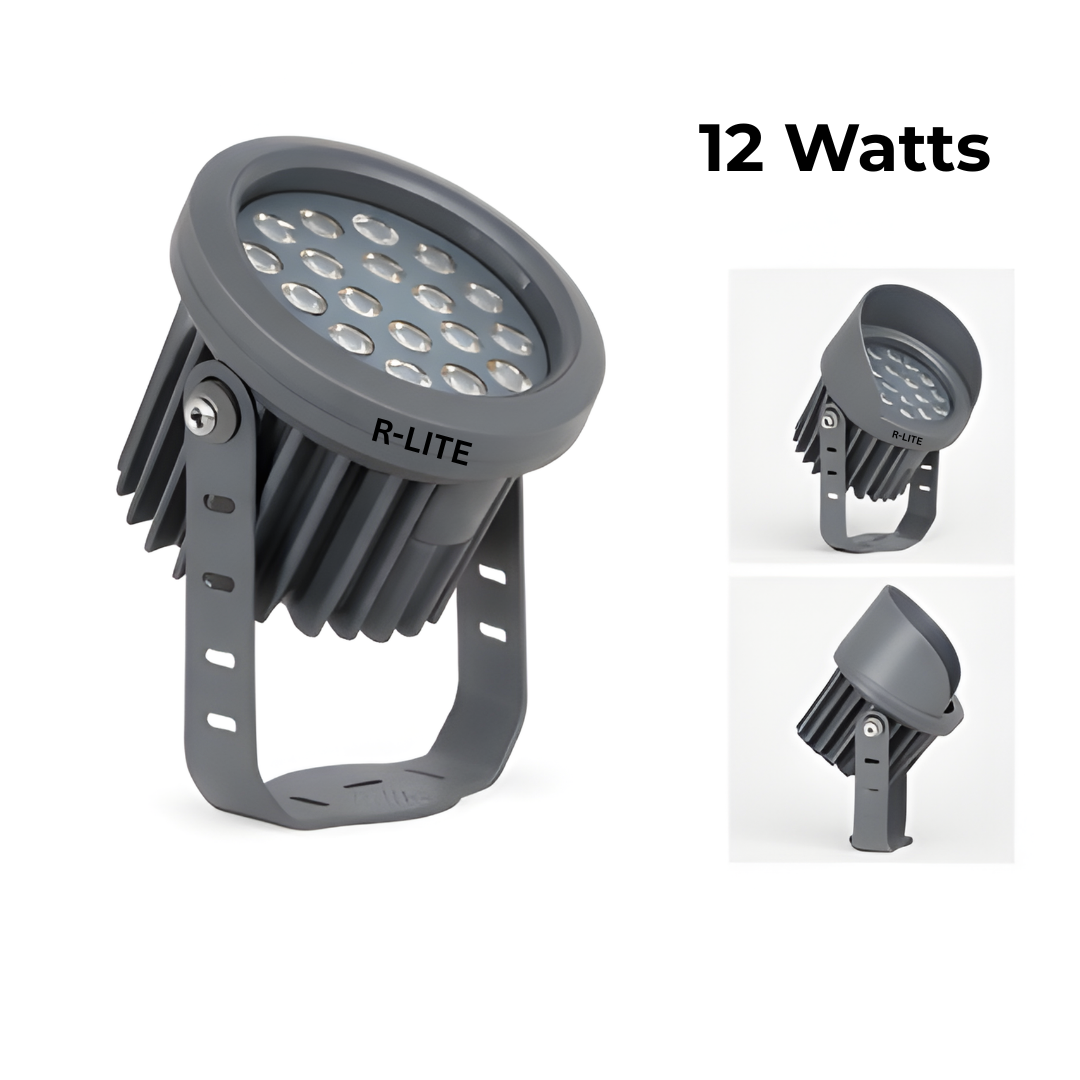

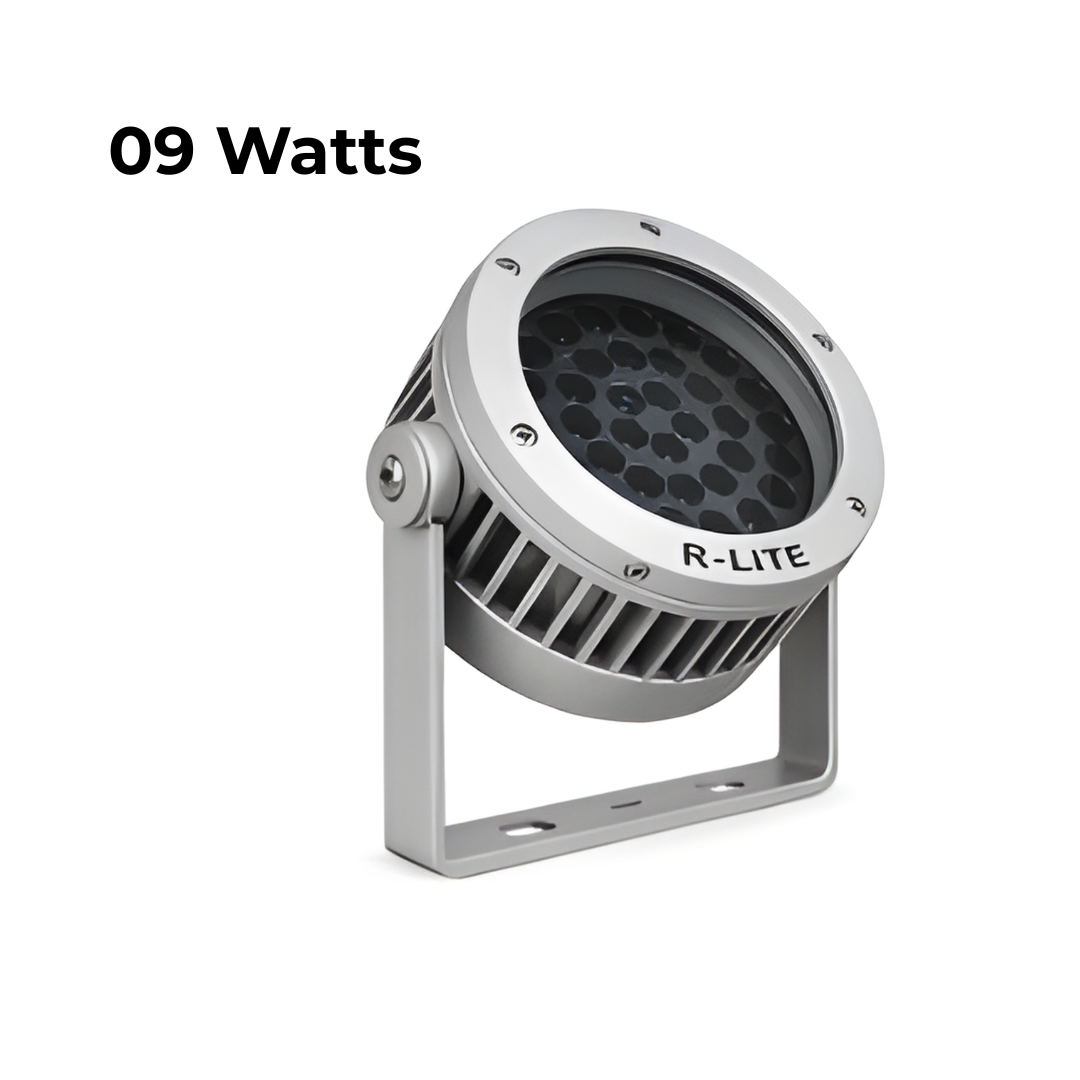

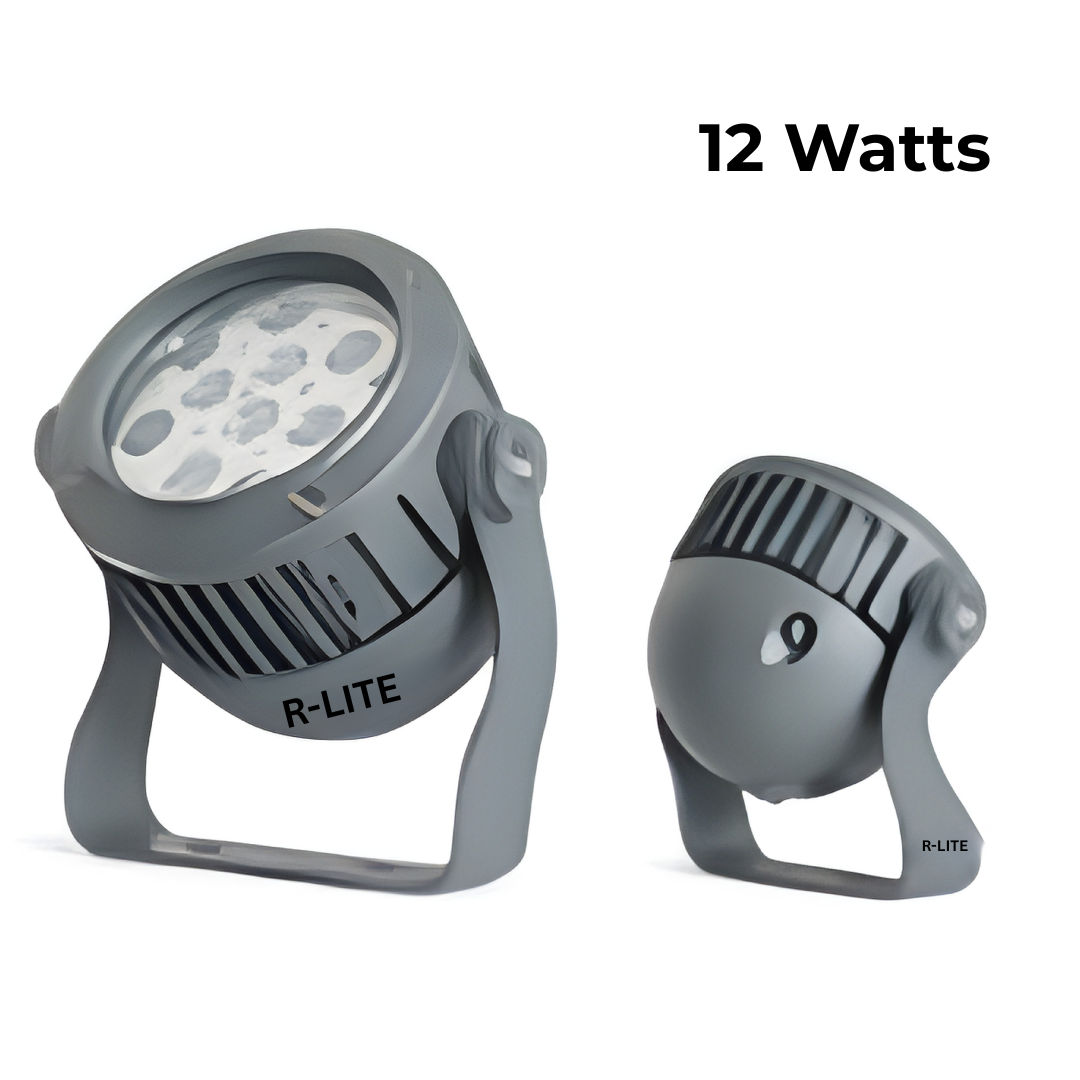

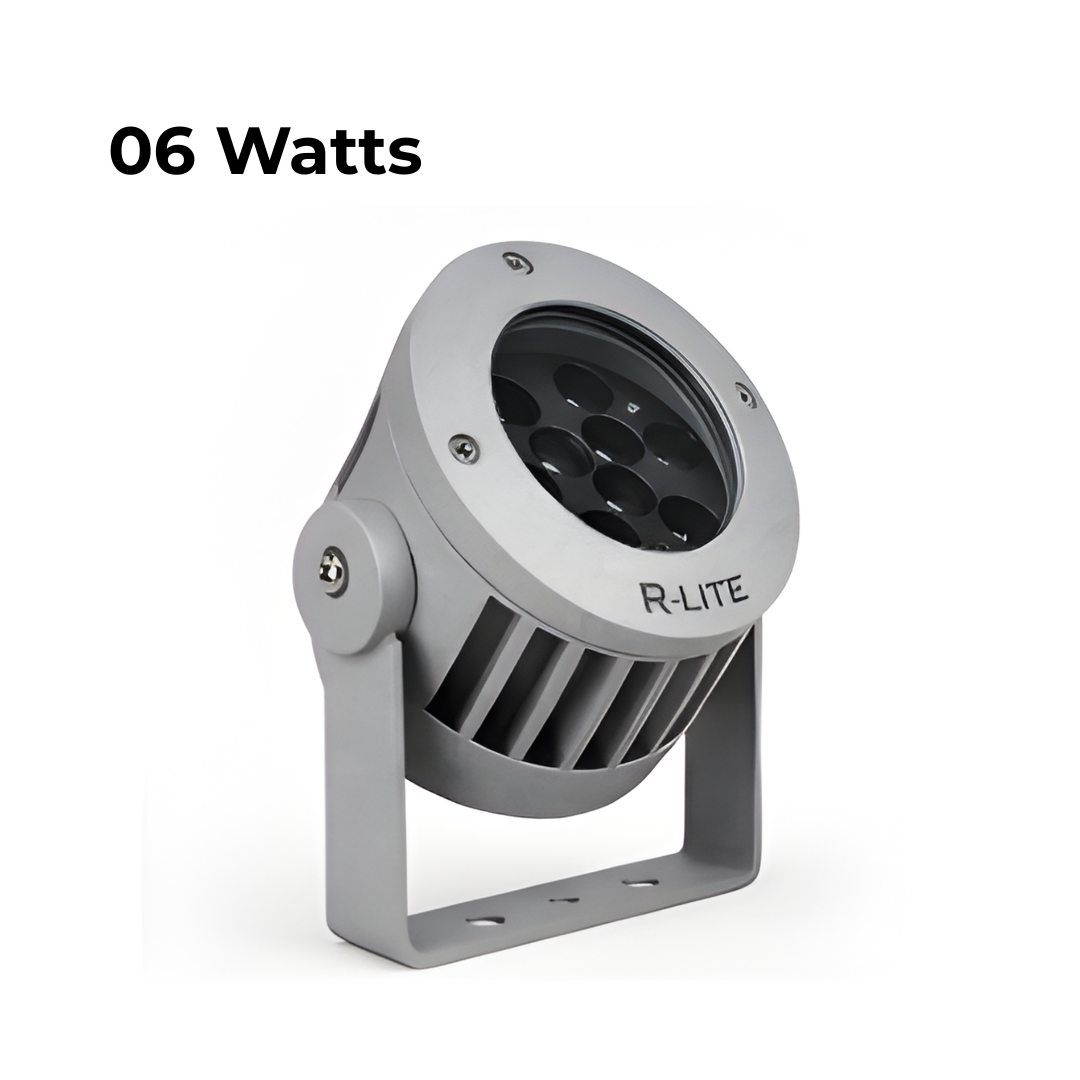

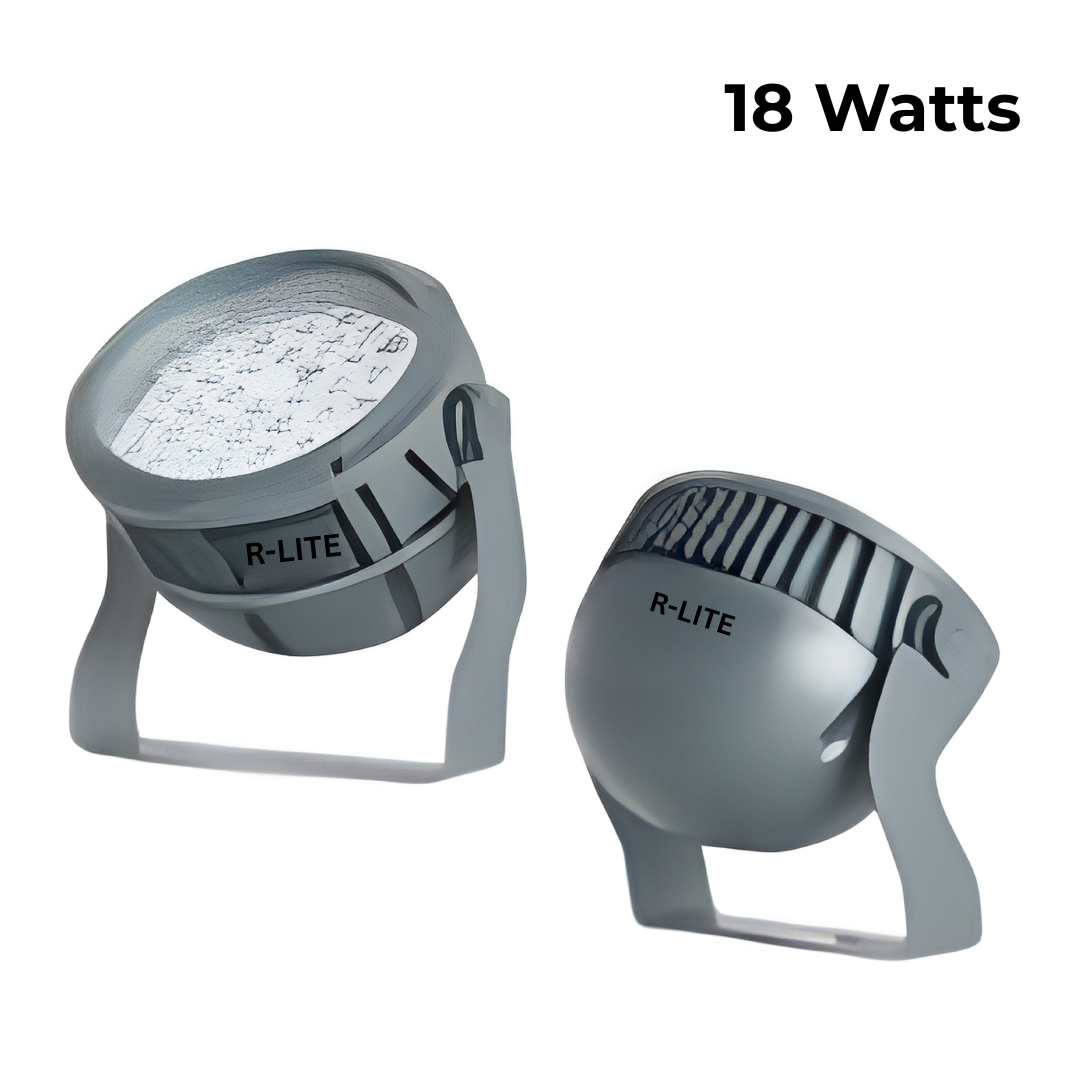

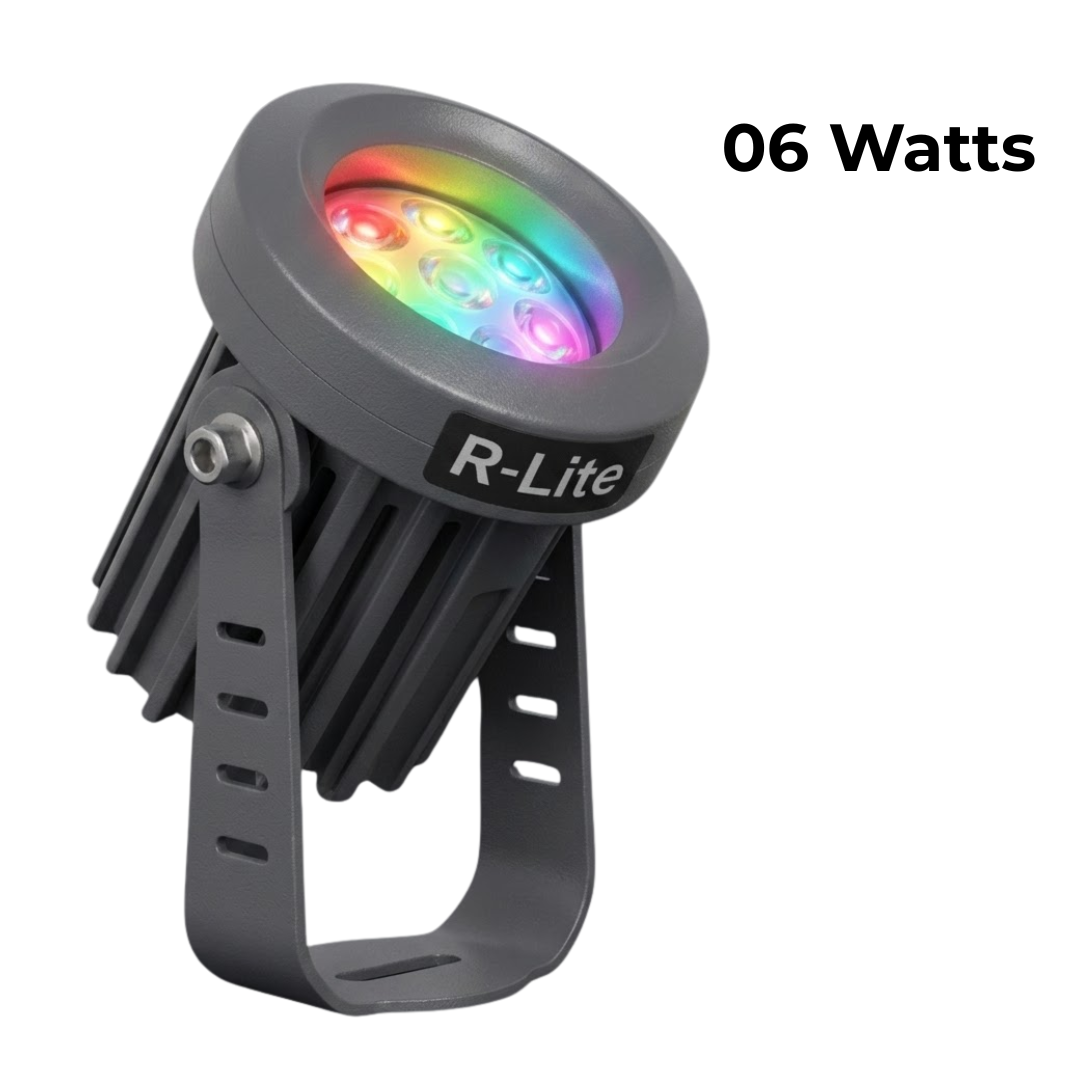

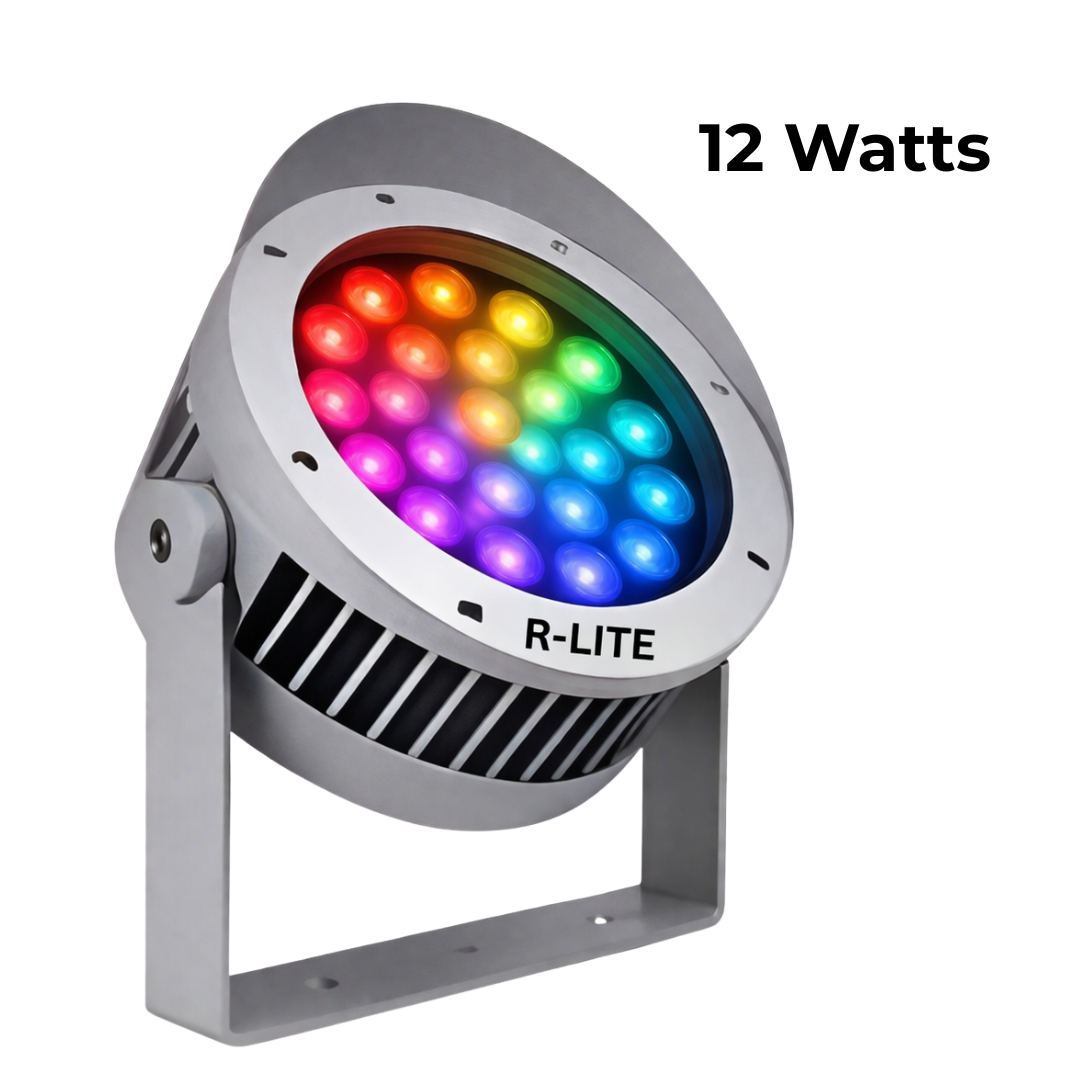

Product gallery
Features & benefits
.png)
Category

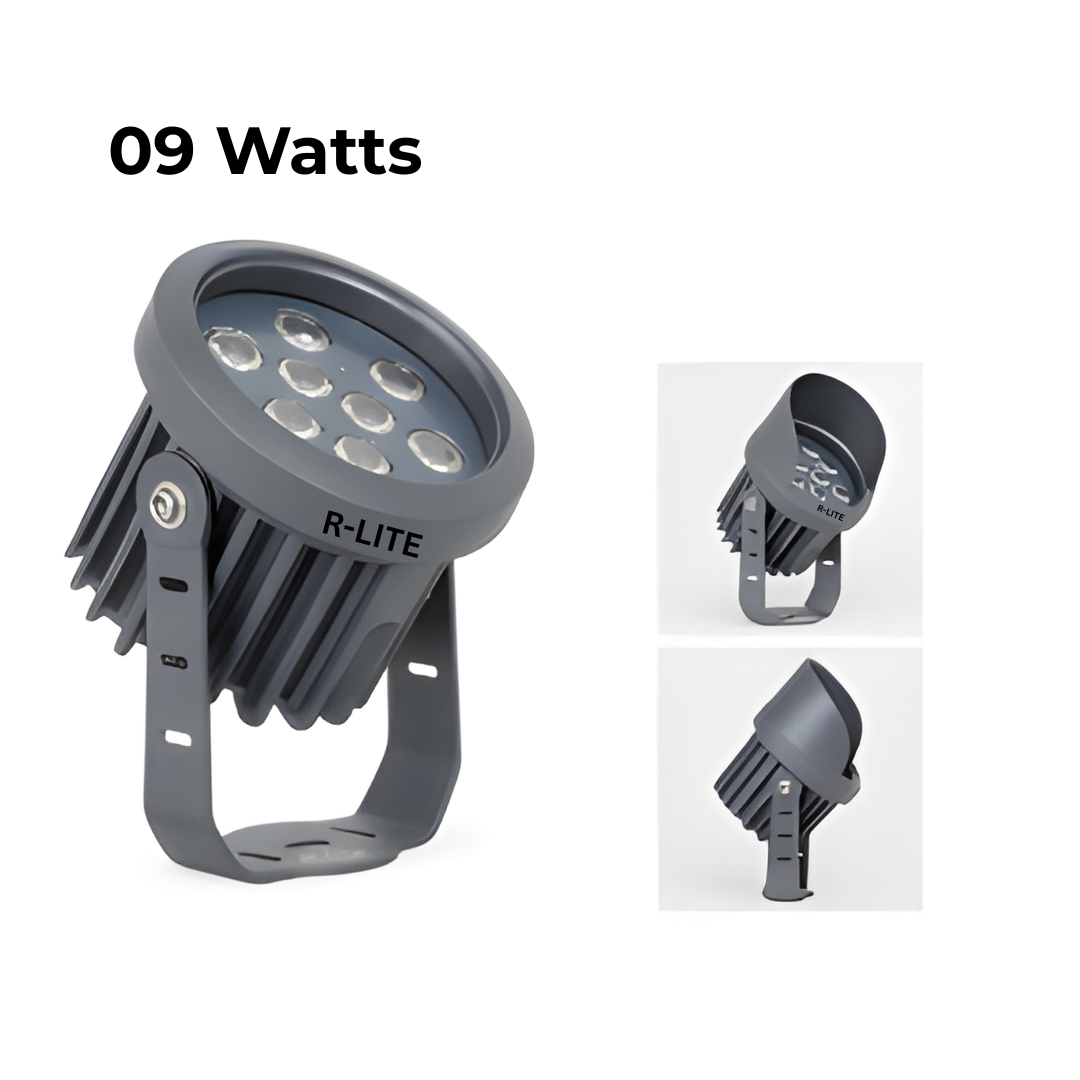

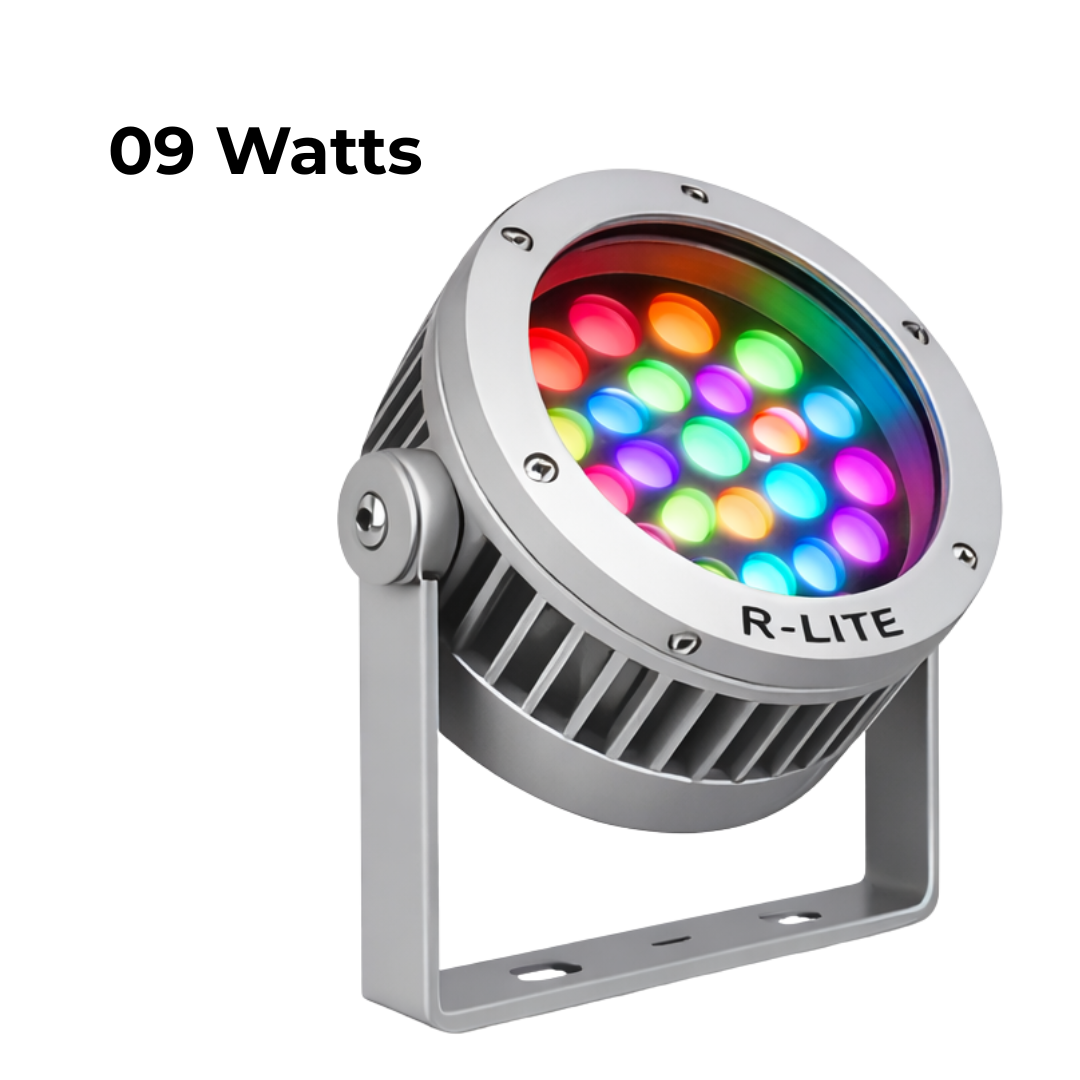

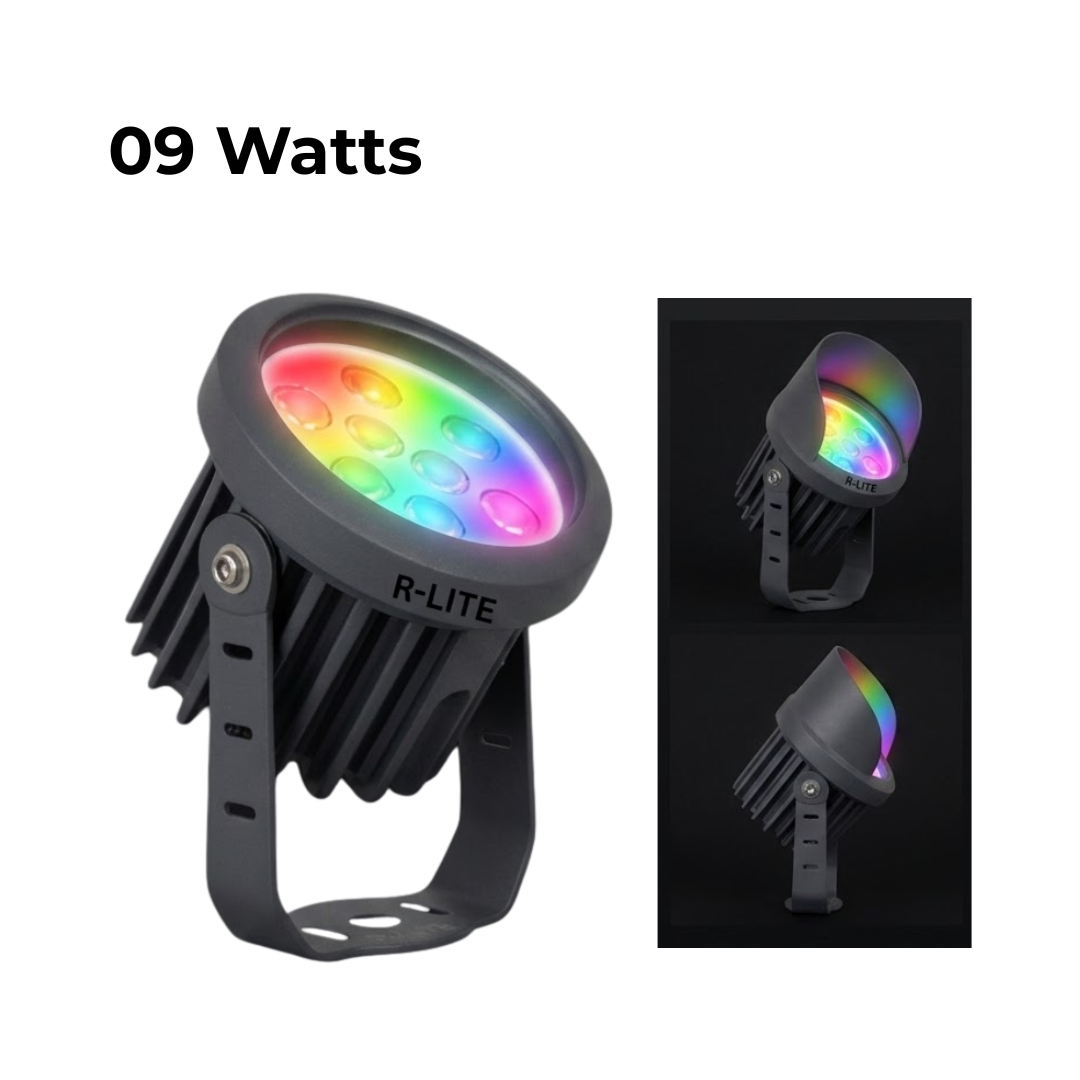

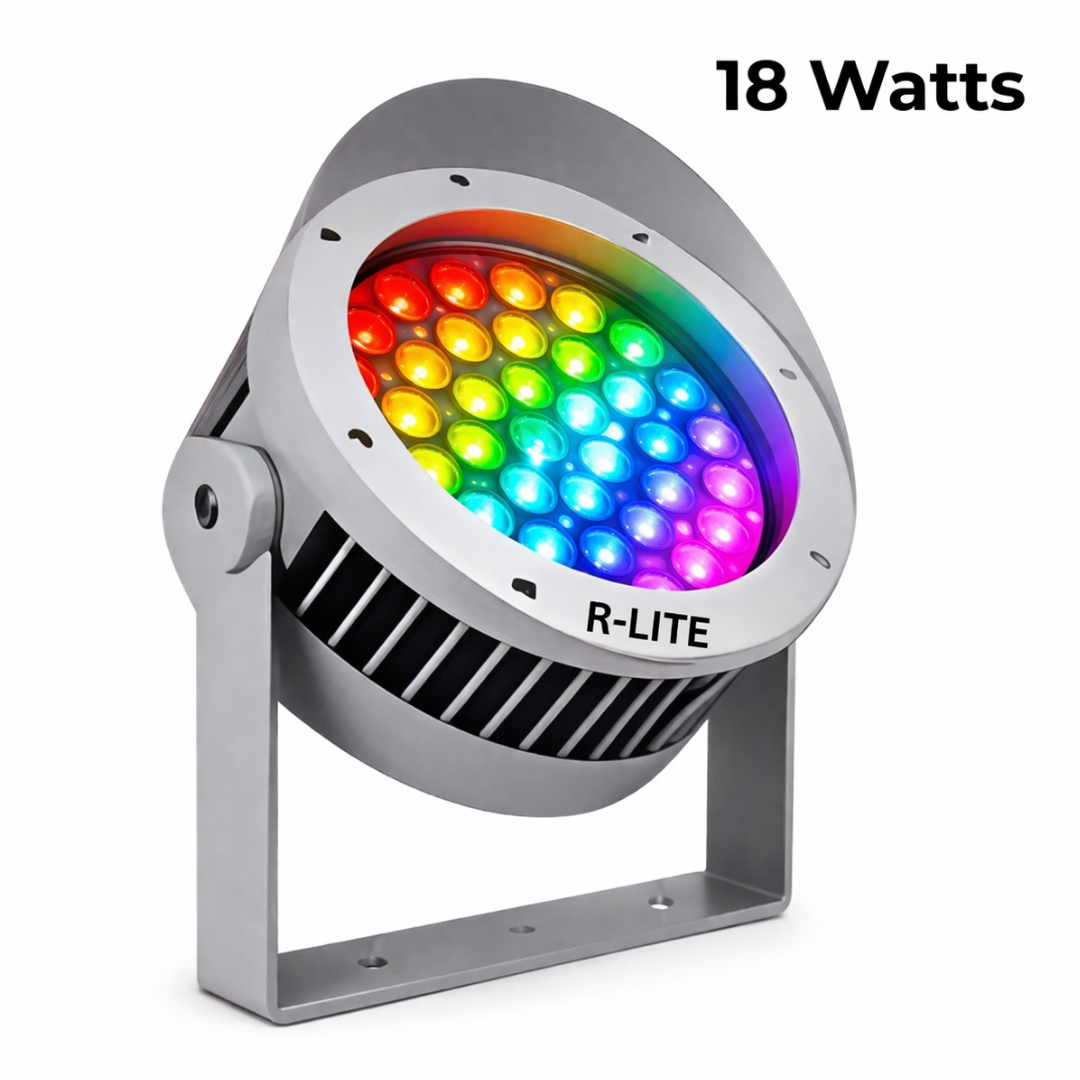

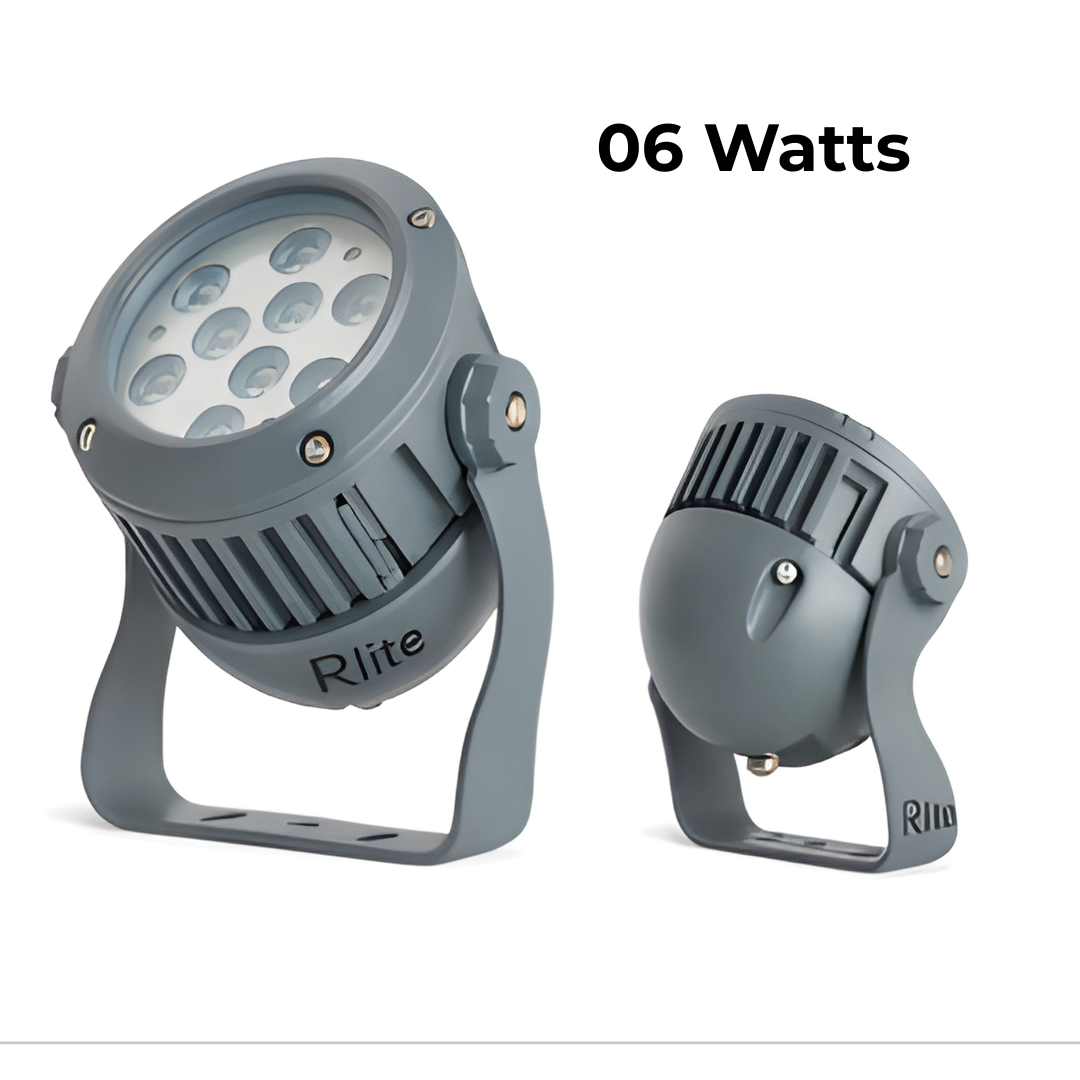

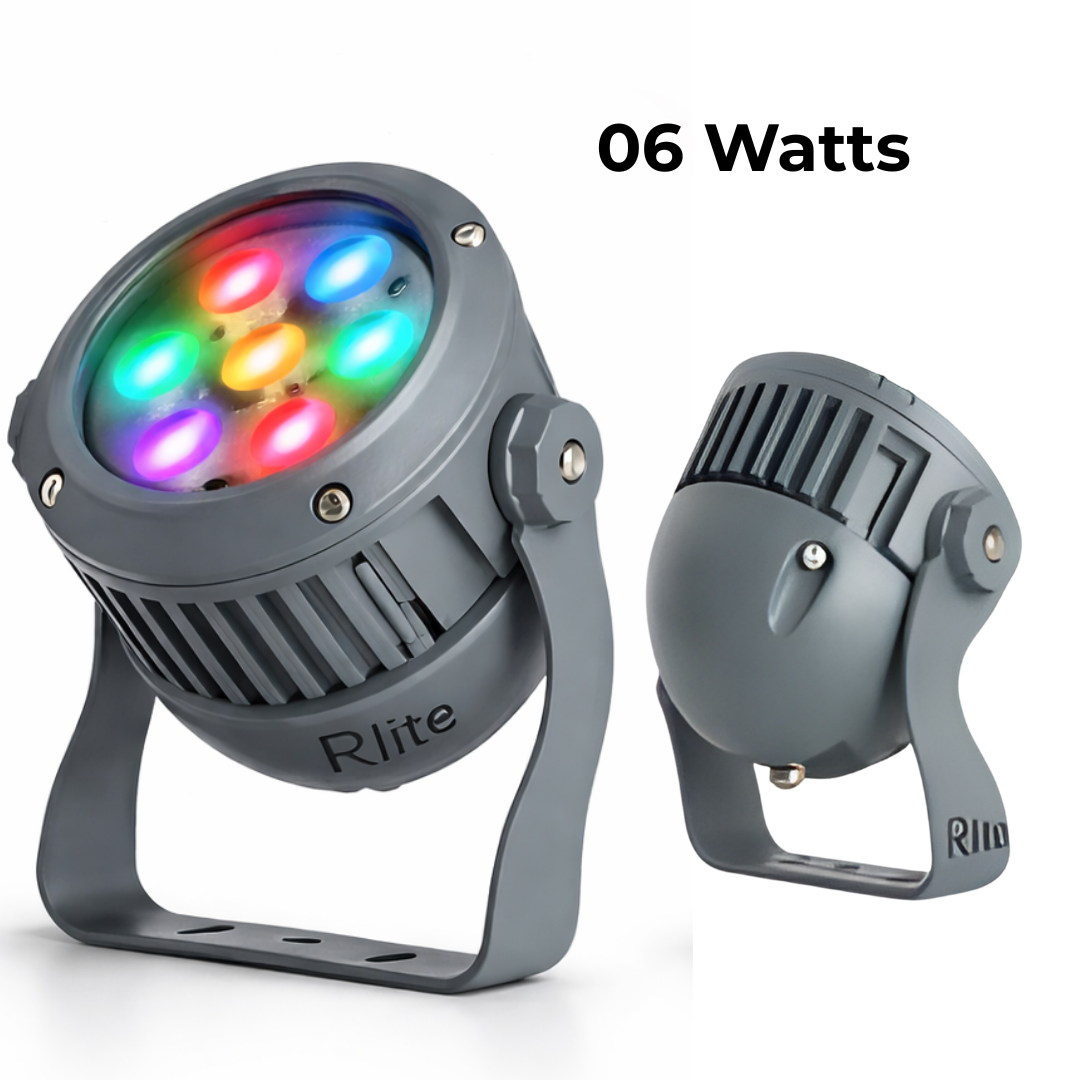

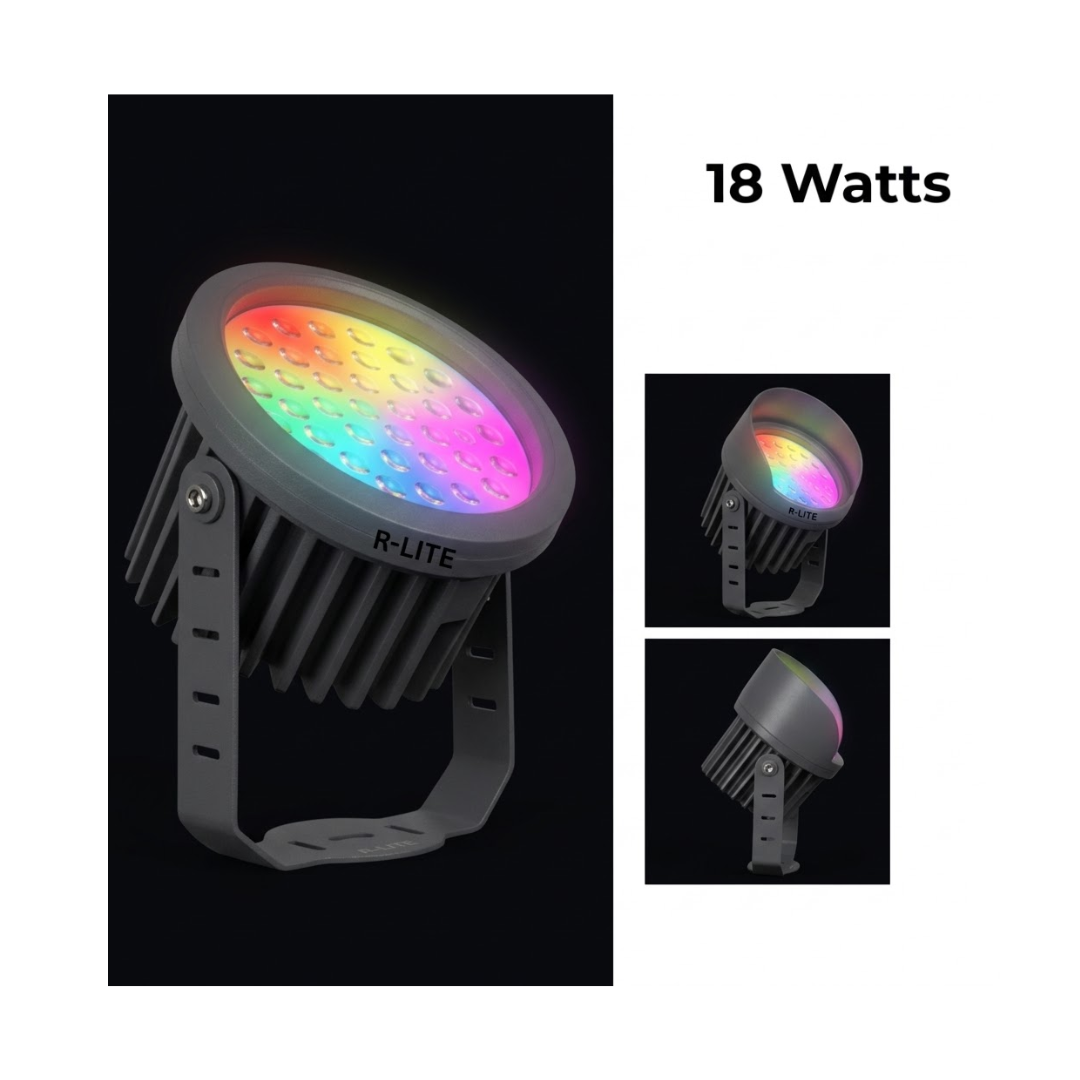

Narrow Beam Highlighter / Spot Light
Light Source
High Efficiency LED
Housing
Die-Cast Aluminium
Diffuser
Clear Toughened Glass
Control
- Mono – ON / OFF - RGBW – DMX / RDM
Voltage
AC / DC (Model Dependent)
Ingress Protection
IP65 / IP67
Mounting
Adjustable Bracket
Application
Outdoor Architectural / Monument Highlighting
Performance overview
| Power range | Beam angle (°) | Effective throw |
|---|---|---|
| 9–18W | 10°–15° | 20–40 ft |
| 24–48W | 5°–10° | 40–80 ft |
| 54–72W | 5°–8° | 80–130 ft |
| 100–150W | 3°–5° | 130–250 ft |
Technical data
| Model | Power | Length | Voltage | CCT / colour | IP | Mounting |
|---|---|---|---|---|---|---|
| RIL-203-9-18 | 9–18 W | AC / DC | WW / RGBW | IP65 / IP67 | Adjustable Bracket | |
| RIL-203-24-48 | 24–48 W | AC | WW | IP65 / IP67 | Adjustable Bracket | |
| RIL-203-54 | 54 W | AC | WW | IP65 / IP67 | Adjustable Bracket | |
| RIL-203-72 | 9–72 W | AC / DC | WW | IP65 | Adjustable Bracket | |
| RIL-203-100-150 | 100–150 W | AC | WW | IP65 | Adjustable Bracket |
